Graphtech

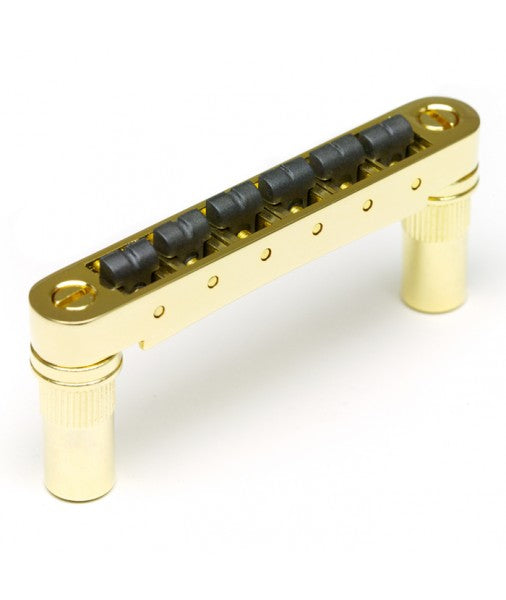

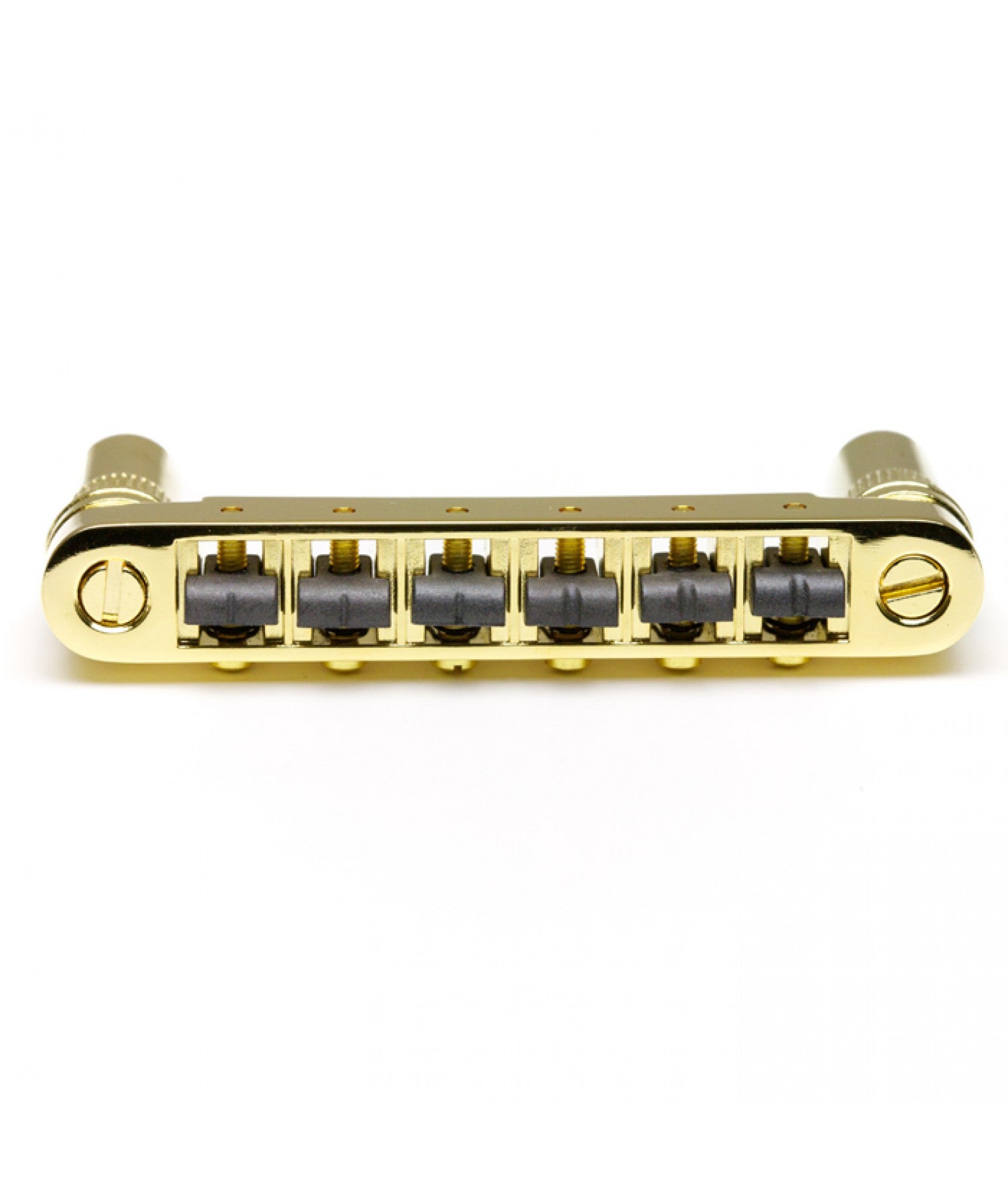

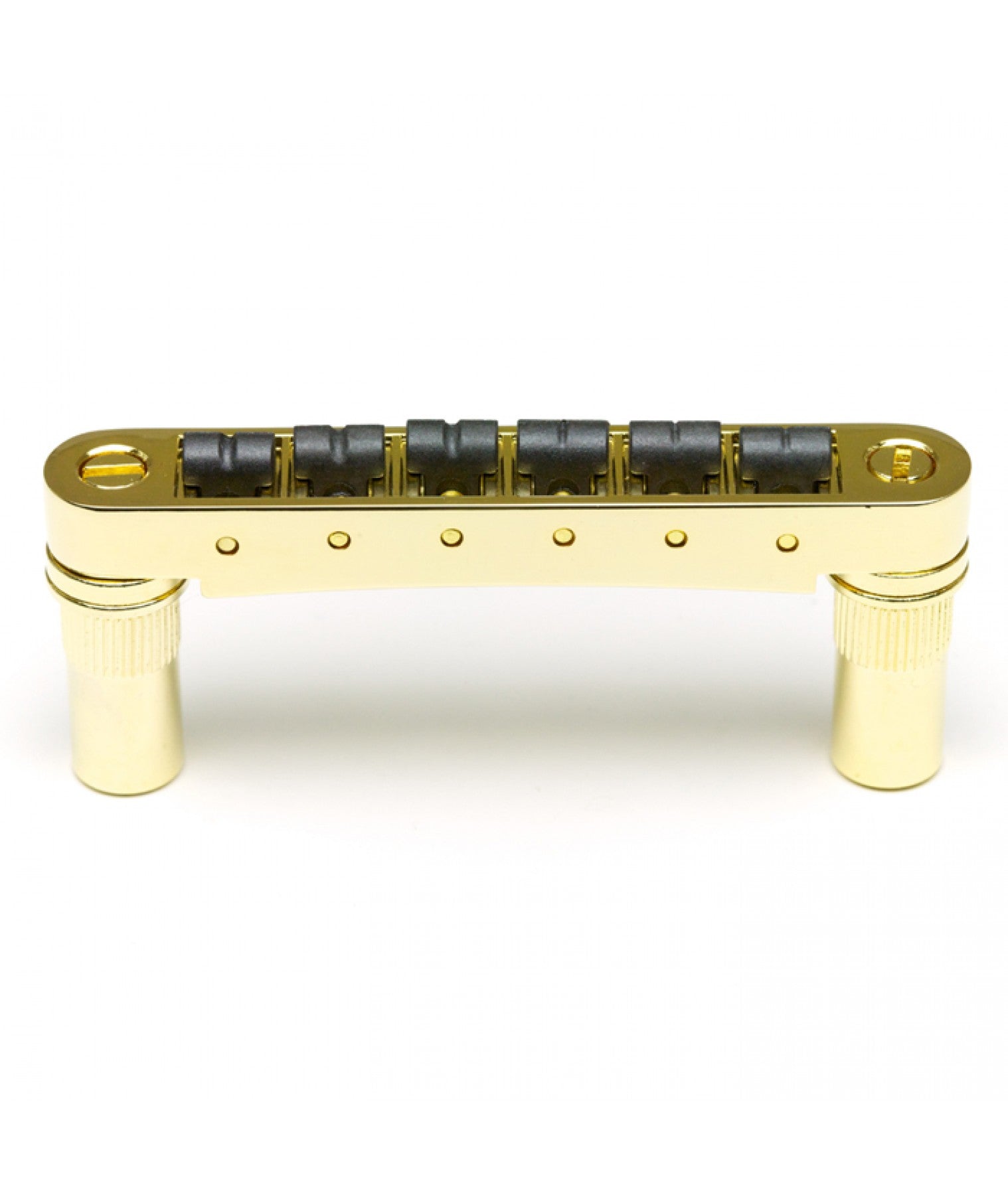

Graphtech ResoMax NV Harmonic Bridge System GOLD 6mm - GTS63G
GTS63GCouldn't load pickup availability
GRAPH TECH RESOMAX NV2 Tune-o-matic 6mm GOLD
The GTS63G is our 6mm ResoMax NV2 tune-o-matic bridge in gold.
This lightweight, high strength bridge will increase harmonic content and
leave your guitar dripping with tone. It comes preloaded with String Saver saddles to reduce string breakage and improve tuning stability.
This is a great option to upgrade or replace the existing bridge on your
Epiphone, ESP, LTD, BC Rich, Carvin, Schecter as well as many other import guitars.
The ResoMax Harmonic Bridge System is made from our lightweight alloy designed to have your guitar bursting with harmonics. It's exclusive AutoLock feature secures the brides and tailpieces to your guitar, with or without strings magnetically with no tools to use or lose. All ResoMax bridges are triple plated for years of durability and good looks.
![]() |
Lightweight, high strength alloy | ![]() |
AutoLock locks the bridge to the guitar without a tool. |
![]() |
Triple plated finish. | ![]() |
Increased harmonic content |
![]() |
String Saver Saddles |
Item | Post Spacing | String Spacing | radius | Thread |
4mm post | 2 29/32" | 2 1/16" | 12" | M5 x 0.8 4h |
6mm post | 2 29/32" | 2 1/16" | 12" | M8 x 1.25 |
Tailpiece | 3 1/4" | NA | 12" | M8 x 1.25 |
