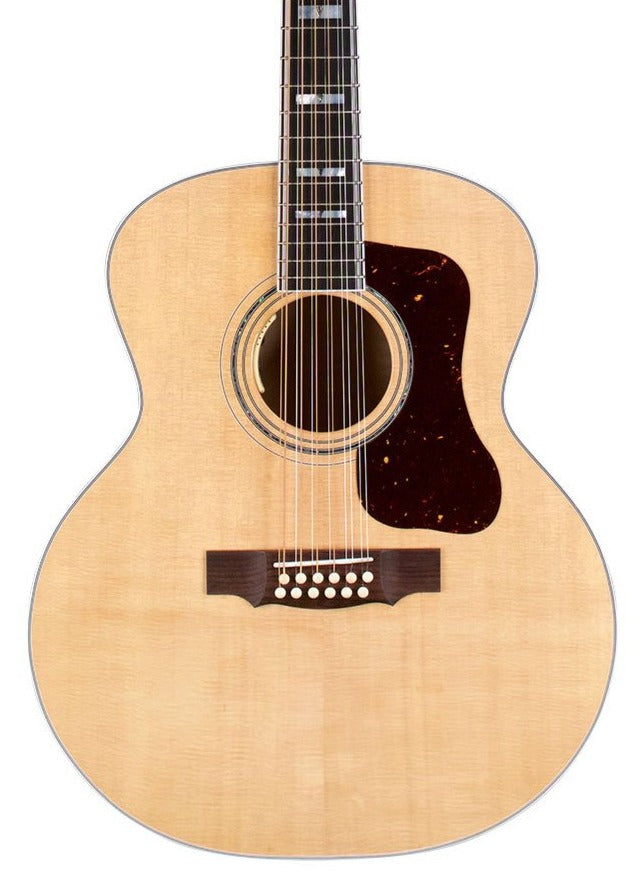

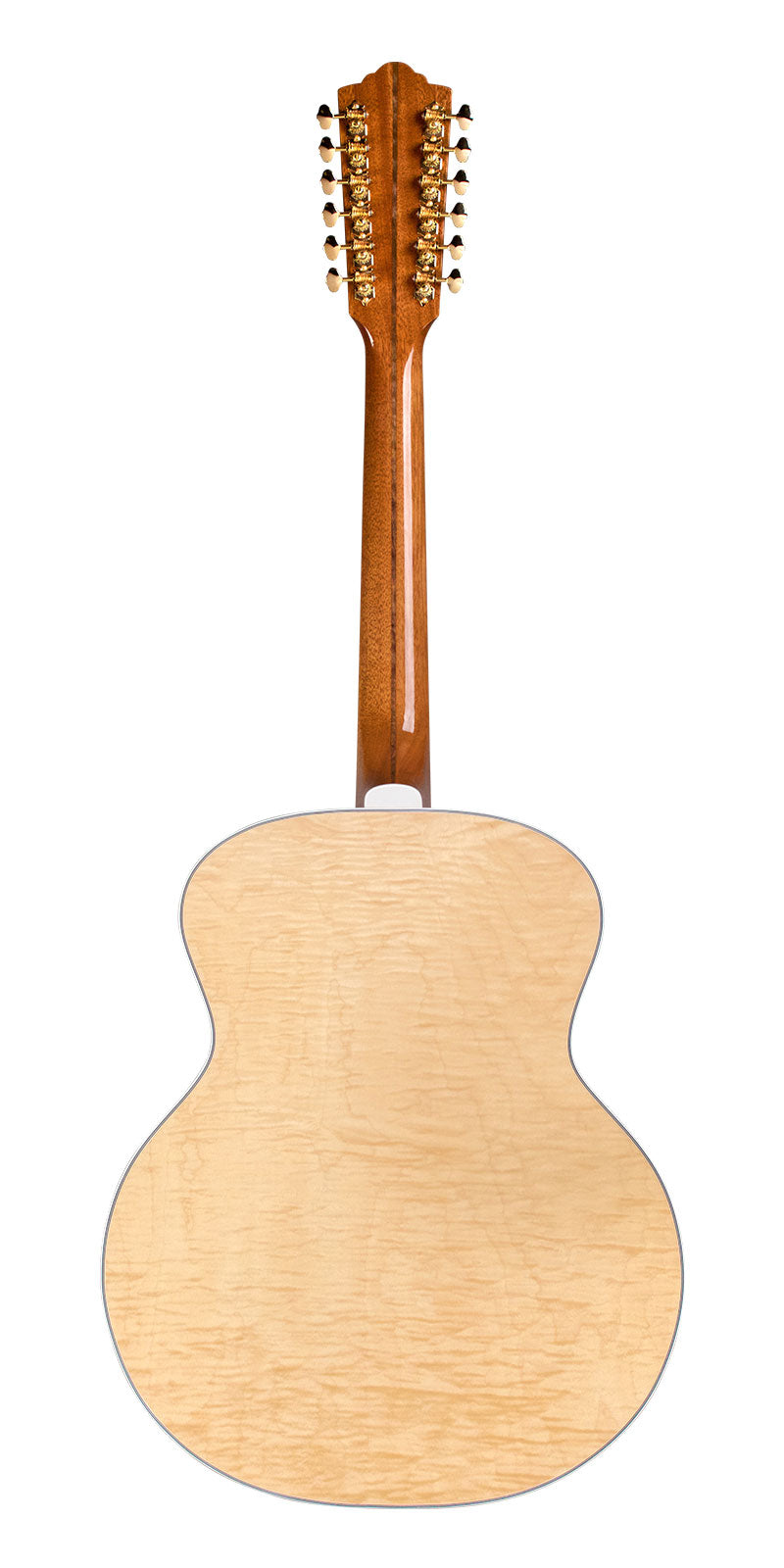

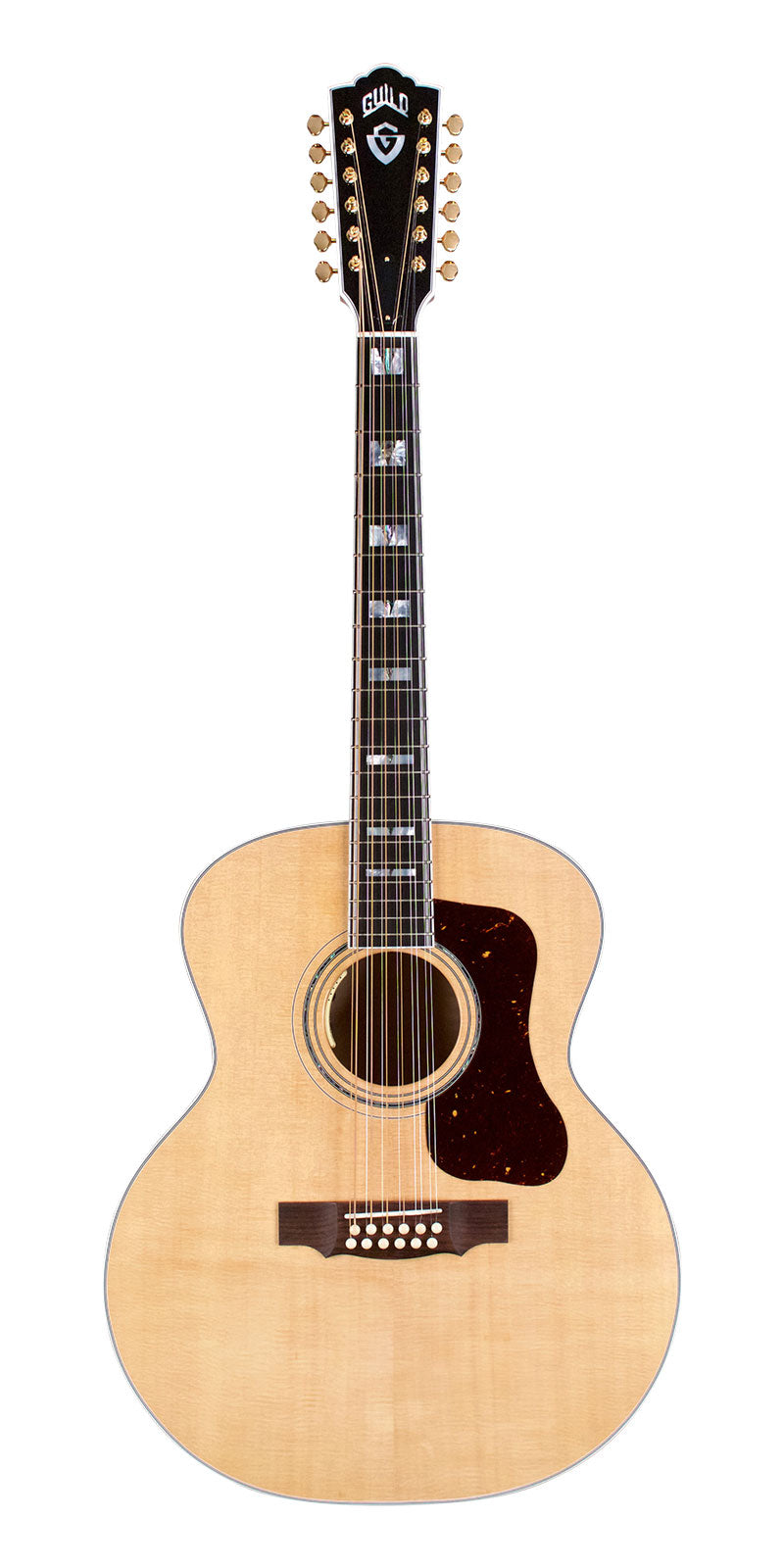

GUILD USA F-512E MAPLE JUMBO 12-STRING W/PICKUP & HARD CASE
GUILD-F512EMAP*PLEASE CONTACT STORE FOR AVAILABILITY*
The F-512 Maple is back and better than ever. Formerly the F-512, this USA-made jumbo has been a staple of the Guild line since the late 1960’s. and features a tight grained solid Sitka spruce top with arched flamed maple back and maple sides. Created on the same arch press that’s been a part of Guild manufacturing since 1985, the F-512 Maple provides sharply focused trebles and an articulate mid-range, perfect for a full, centralized, harp-like sound. Braced with delicate, scalloped Adirondack spruce, this model produces the shimmering highs that players have come to expect from a Guild 12-string. Elegant cosmetic appointments include the classic Guild “V-block” inlays, gold Gotoh hardware, and a beautiful Nitrocellulose lacquer finish. Exceptional build quality and premium specifications make it a worthy heir to the historic Guild 12-string legacy. Available in Natural finish and with LR Baggs Electronics.
SPECS:
Body
Body Shape | F - Jumbo |
Body Top | Solid Sitka Spruce |
Top Bracing Pattern | Scalloped X |
Soundhole Diameter | 4" (100mm) |
Rosette | Abalone and ABS Ring |
Top Purfling Inlay | Black and White ABS |
Body Sides | Flamed Maple |
Body Back | Arched Flamed Maple |
Body Binding | White and Black ABS |
Neck
Neck Material | Mahogany with a Walnut Center Strip |
Scale Length | 25 5/8" (651mm) |
Neck Shape | C Shape |
Nut Width | 1 7/8" (48mm) |
Neck Thickness 1st Fret | 23mm |
Neck Thickness 9th Fret | 25mm |
Truss Rod | Dual Action |
Truss Rod Wrench | 4mm Allen Key |
Fingerboard Material | Ebony |
Fingerboard Radius | 12" (305mm) |
Fingerboard Inlays | V-Blocks - Mother-Of-Pearl and Abalone |
Frets Total | 20 |
Finish
Color | Natural (NAT) |
Finish | Satin Polyurethane |
Finish - Top | Gloss Nitrocellulose |
Finish - Back and Sides | Gloss Nitrocellulose |
Finish - Neck | Gloss Nitrocellulose |
Hardware
Bridge Material | Indian Rosewood |
Bridge String Spacing | 2 3/8" (60mm) |
Bridge Pins | Bone |
Saddle Material | Compensated Bone |
Hardware Finish / Plating | Gold |
Nut Material | Bone |
Tuning Machines | Gotoh SE701 Open Gear in Gold |
Endpin | Endpin Jack |
Pickguard | Nitrocellulose |
Electronics
Electronics | LR Baggs Anthem with Volume, Mix, and Phase Controls |
Other
Strings | D'Addario EXP38 - Coated Phosphor Bronze, 12-String, Light Gauge (.010 - .047) |
Included Case | Guild Premium Humidified Wood Case |
Upper Bout Width | 12 1/2" (318mm) |
Lower Bout Width | 17 1/4" (438mm) |
Body Depth Upper Bout | 3 3/4" (95mm) |
Body Depth Lower Bout | 4 3/4" (119mm) |
Body Length | 20 1/2" (521mm) |
Overall Length | 44" (1118mm) |
