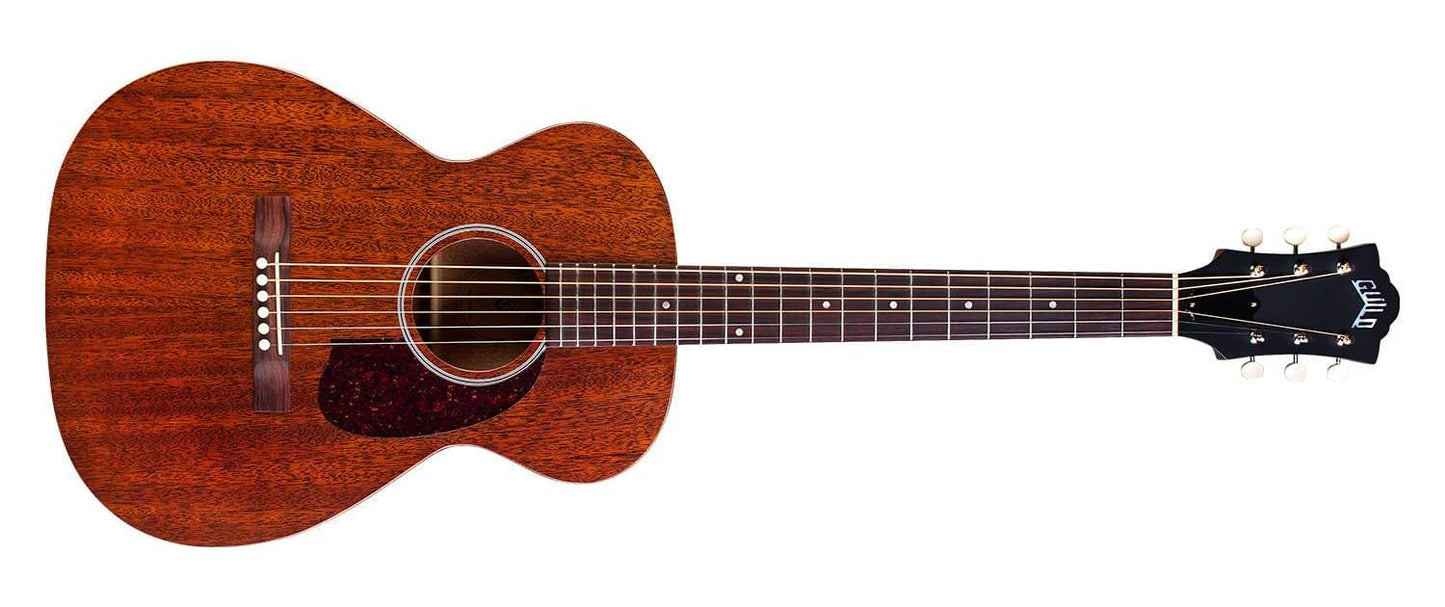

GUILD USA M-20E SOLID CONCERT WITH CASE AND PICKUP
GUILD-M20E*PLEASE CONTACT STORE FOR AVAILABILITY*
Guild’s iconic M-20 was the first guitar off the production line in 1967, when the company had grown so much that they relocated to a new factory in Westerly, RI. Nearly 50 years later, history has repeated itself in a brand new, state-of-the-art facility in California. The M-20 is a concert size acoustic guitar built with solid mahogany top, back, and sides, informally nicknamed “the Nick Drake guitar” for its inclusion on the album art for Drake’s album, Bryter Layter. It features a rosewood bridge and fingerboard, bone nut and saddle, and an extremely light satin finish that allows this guitar to truly sing. The M-20’s modest appointments include a vintage style rosette and Guild’s peak logo inlaid in mother-of-pearl on the headstock. Each M-20 comes with a hand-signed, numbered certificate of authenticity, and ships with a hardshell case. Available in Natural, Vintage Sunburst, Natural with LR Baggs pickup (M-20E Nat), and Sunburst with LR Baggs pickup (M-20E VSB).
SPECS:
Body
| Body Shape | M - Concert |
| Body Top | Solid African Mahogany |
| Top Bracing Pattern | Scalloped X |
| Soundhole Diameter | 3 11/16" (93mm) |
| Rosette | ABS Ring |
| Top Purfling Inlay | N / A |
| Top Binding | N / A |
| Body Sides | Solid African Mahogany |
| Side Purfling Inlay | N / A |
| Body Back | Solid African Mahogany |
| Body Binding | N / A |
Neck
| Neck Material | Mahogany |
| Scale Length | 24 3/4" (628mm) |
| Neck Shape | C Shape |
| Nut Width | 1 3/4" (44.5mm) |
| Neck Thickness 1st Fret | 21mm |
| Neck Thickness 9th Fret | 22.5mm |
| Truss Rod | Single Action |
| Truss Rod Wrench | 8mm Socket Wrench |
| Fingerboard Material | Indian Rosewood |
| Fingerboard Radius | 12" (305mm) |
| Fingerboard Inlays | Pearloid Dots |
| Frets Total | 20 |
| Fret Type | Jescar 43080 |
Finish
| Color | Natural (NAT) |
| Finish | Satin Polyurethane |
| Finish - Top | Satin Varnish |
| Finish - Back and Sides | Satin Varnish |
| Finish - Neck | Satin Varnish |
Hardware
| Bridge Material | Indian Rosewood |
| Bridge String Spacing | 2 1/4" (57mm) |
| Bridge Pins | Ivory Colored Plastic |
| Saddle Material | Compensated Bone |
| Hardware Finish / Plating | Nickel Plated |
| Nut Material | Bone |
| Endpin | Ivory Colored Plastic |
| Pickguard | Tortoiseshell |
Electronics
| Electronics | LR Baggs VTC electronics |
Other
| Strings | D'Addario EXP16 - Coated Phosphor Bronze Light (.012 - .053) |
| Included Case | Guild Deluxe Humidified Wood Case |
| Upper Bout Width | 10 1/8" (257mm) |
| Lower Bout Width | 13 3/4" (350mm) |
| Body Depth Upper Bout | 3 1/4" (83mm) |
| Body Depth Lower Bout | 4 1/8" (105mm) |
| Body Length | 18" (457mm) |
| Overall Length | 38 3/4" (984mm) |
