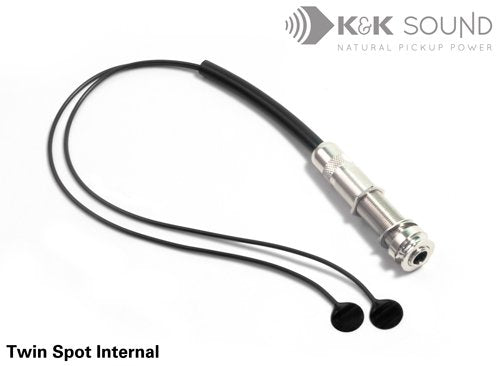

K&K Twin Spot Internal Acoustic Pickup

The Twin Spot is a two-head piezo transducer that can be used to amplify a wide variety of instruments, including guitars, saz, oud, bouzouki, balaleika, cello, dulcimer, bongos, and many more.

Positioning the pickup heads at two spots results in a more balanced sound structure and a broader frequency range. The small heads are only 1/2 inch in diameter, allowing them to be installed unobtrusively and in hard-to-reach areas of an instrument.

The Twin Spot is available as an internal jack. The internal jack can be mounted from the outside so no soldering is necessary. The pickup heads are attached with a special double-side adhesive film, which is UV resistant to ensure safe adhesion even after years of use. It is ultra-thin and enables the harmonic frequencies to completely pass through to the pickup disks.

Technical Specs

• Pickup head diameter: 1/2"
• Height: 1/32"
• Impedance: High ohmic
• Length of connection cables: 1 ft. each
• Jack (External): Quarter inch, connected mono, with nylon shell and self-adhesive attachment
• Jack (Internal): Shielded Endpin Jack (stereo type, connected mono), no soldering necessary
