KNA NG-1 V2 Classical Nylon Guitar Pickup

NG-1 version 2 is the perfect nylon string guitar pickup choice for guitarists who need a piezo pickup to transfer the natural sound of their instrument.

It's a classical guitar pickup that brings true nylon-string sound without modification to the instrument.

Features:
Installs with no modification

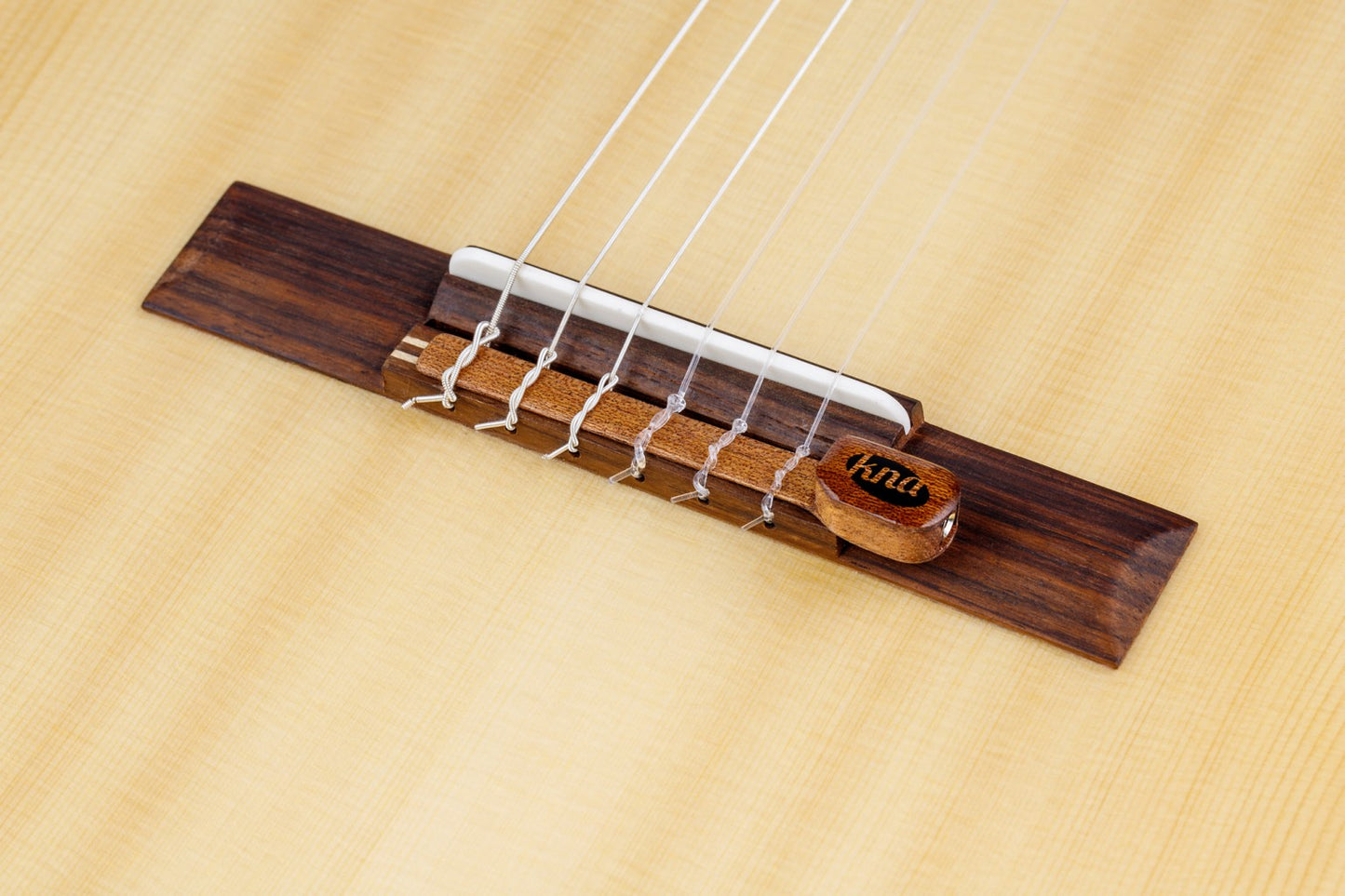

NG-1 version 2 installs safely and securely on the classical or flamenco guitar tie block utilizing the tension of the strings.

Wood case
The piezo element is encased in elegant and stylish mahogany. The lightweight assembly offers maximum tonal sensitivity.

Natural sound
NG-1 version 2 has a passive design that reproduces the natural sound of the instrument with no need for a battery.

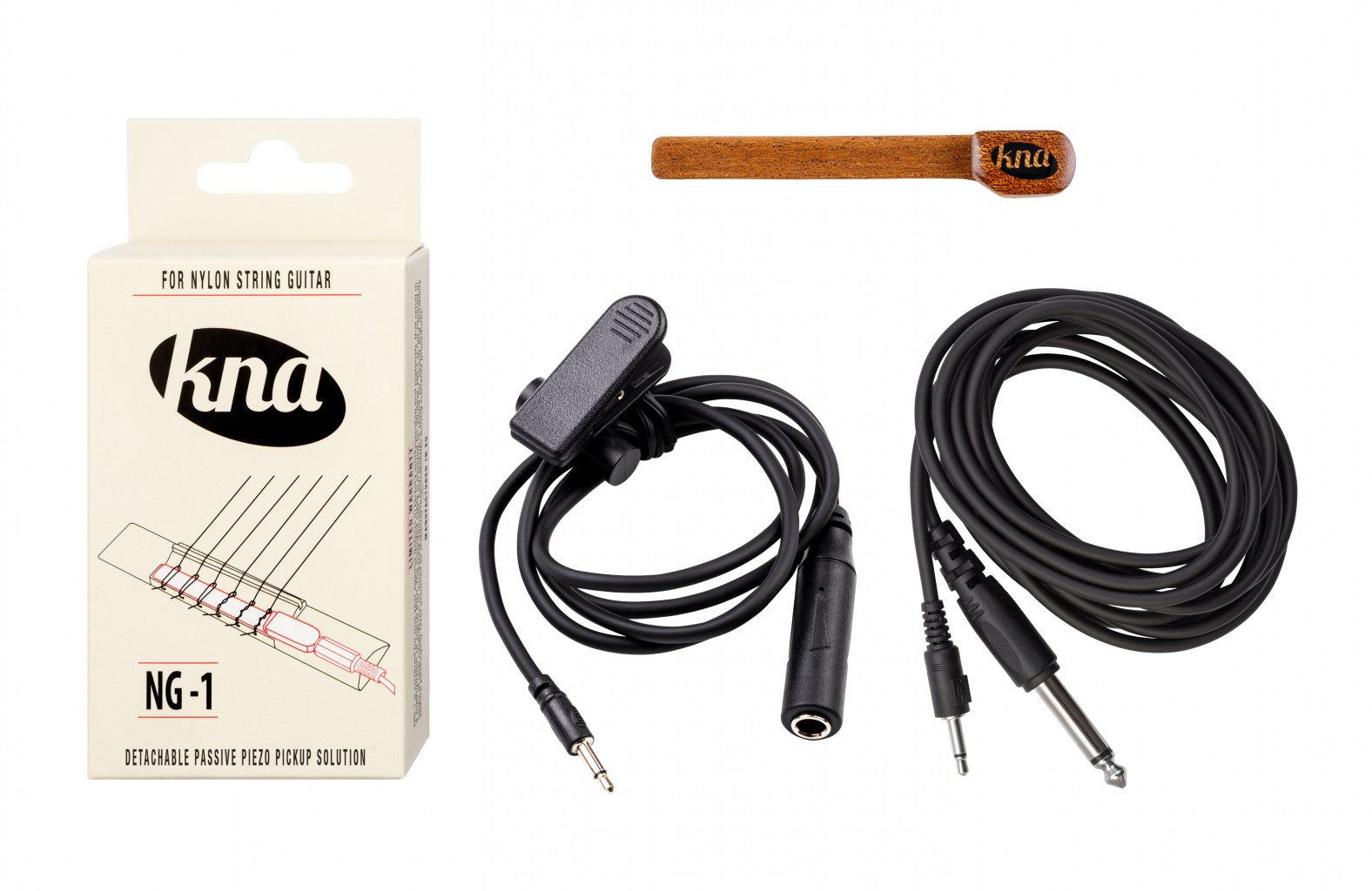

Cable included
A 2.5m 1/8" to 1/4" cable is included for easy connection to an amplifier or mixer.

DOWNLOAD INSTALLATION INSTRUCTIONS HERE

Weight
3.8g. / 0.137oz
Overall length
74mm / 2.91"
Height / jack housing
9mm / 0.35"
Active element measurements
Length
73mm / 2.87"
Width
9.6mm / 0.38"
Thickness
2mm ± 0.05mm

0.079" ± 0.002"
Wood
Mahogany
