NU-X

NU-X B-8 2.4GHZ Professional Instrument Wireless System

NXB8
Regular price $549.00
Regular price Sale price $549.00
% OFF Sold out
Tax included.

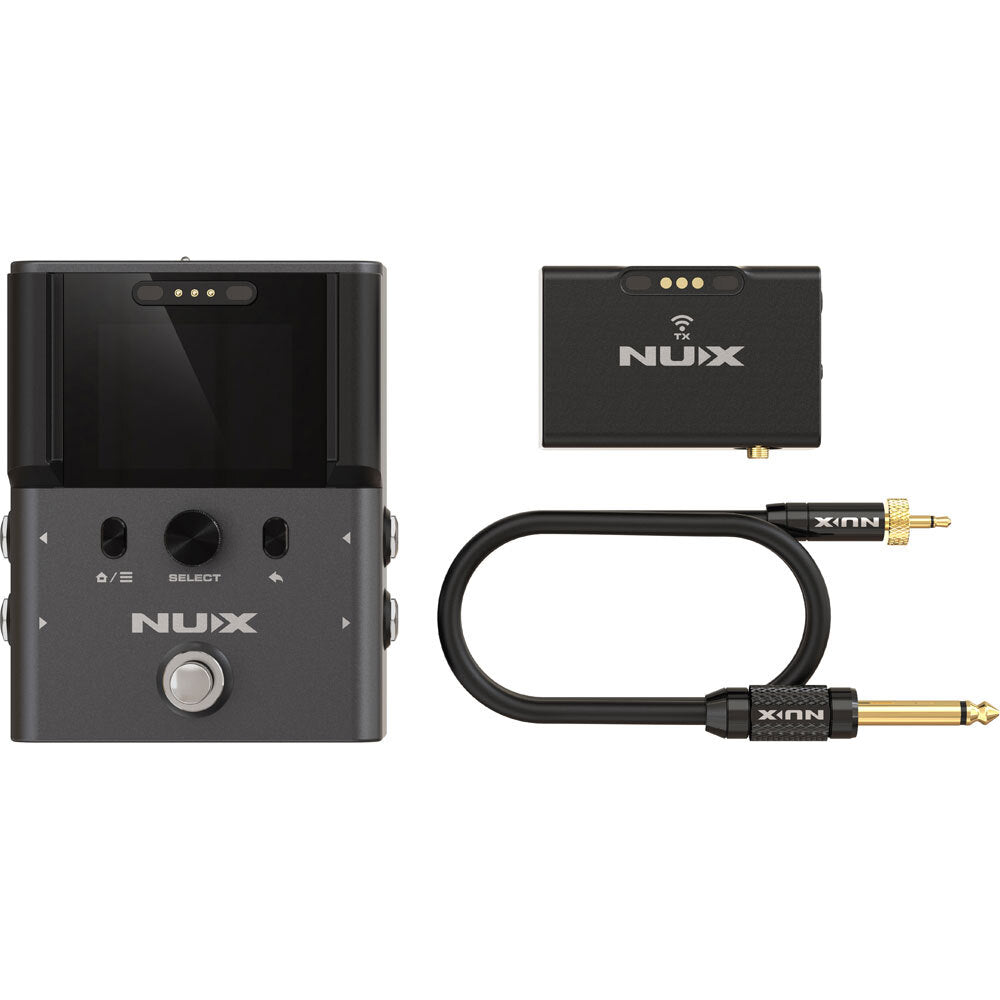

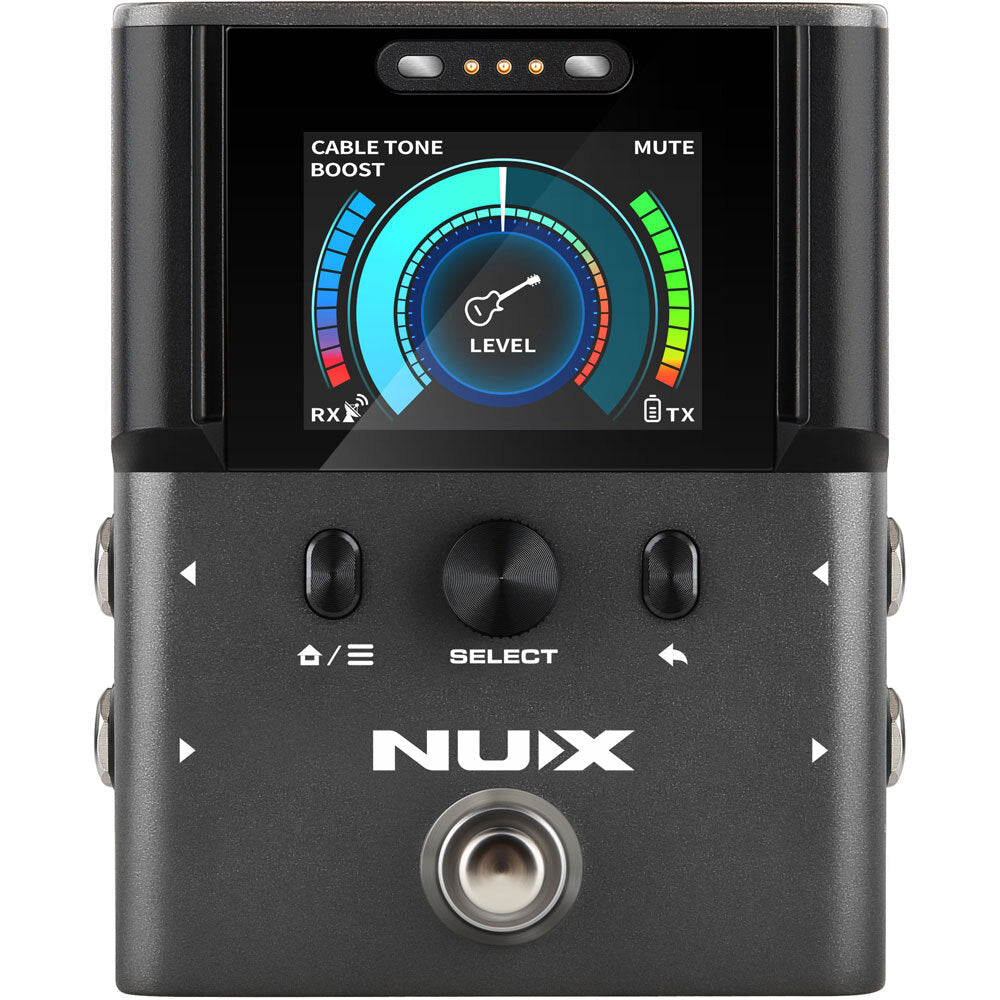

NUX B-8 is a redefined wireless system with automatic setup, 2.4 GHz interference-free broadcasting frequency, and 24-bit 48 kHz high-quality audio transmitting. The signal transmitting latency is as low as 2.5ms at the best performance. The operation range is up to 50 meters (160-feet).

B-8 wireless system fits all types of electric guitar, electric-acoustic guitar, bass guitar, and various instruments with electronic pickups. No matter what instrument you play, you can enjoy the convenience with B-8 wireless.
  • Operating Frequency Band: 2400 - 2483.5MHz
  • Audio Quality: 24bit/48kHz
  • Frequency Response: 20Hz - 20kHz
  • Latency: 2.5ms (best performance setting) -8.7ms (safety mode)
  • Input Impedance: 1 MΩ
  • Maximum Input Level: 1 kHz at 1% THD +6.2 dBV (5.78 Vp-p)
  • THD+N: 0.01% 1kHz, typical
  • Dynamic Range: 122dB, A-weighted (OUTPUT/SEND)
  • Output level Adjustment Range: mute -64dB~0dB
  • Auto-sleep Mode: N/A
  • Built-in Battery Capacity: 3.7V/500mAh Rechargeable Li-polymer (Transmitter)
  • TX Battery Life: up to 6.5 hours
  • Power Requirements: 7V to 12V DC, 500mA min, negative tip power supplies (Receiver)
  • Operation Range: Up to 50m (165 feet) maximum
  • TX Dimensions (L x W x H): 72.5 x 49.3 x 23mm
  • TX Weight: 63g
  • RX Dimensions (L x W x H): 122 x 95 x 60mm
  • RX Weight: 500g
