One-Control

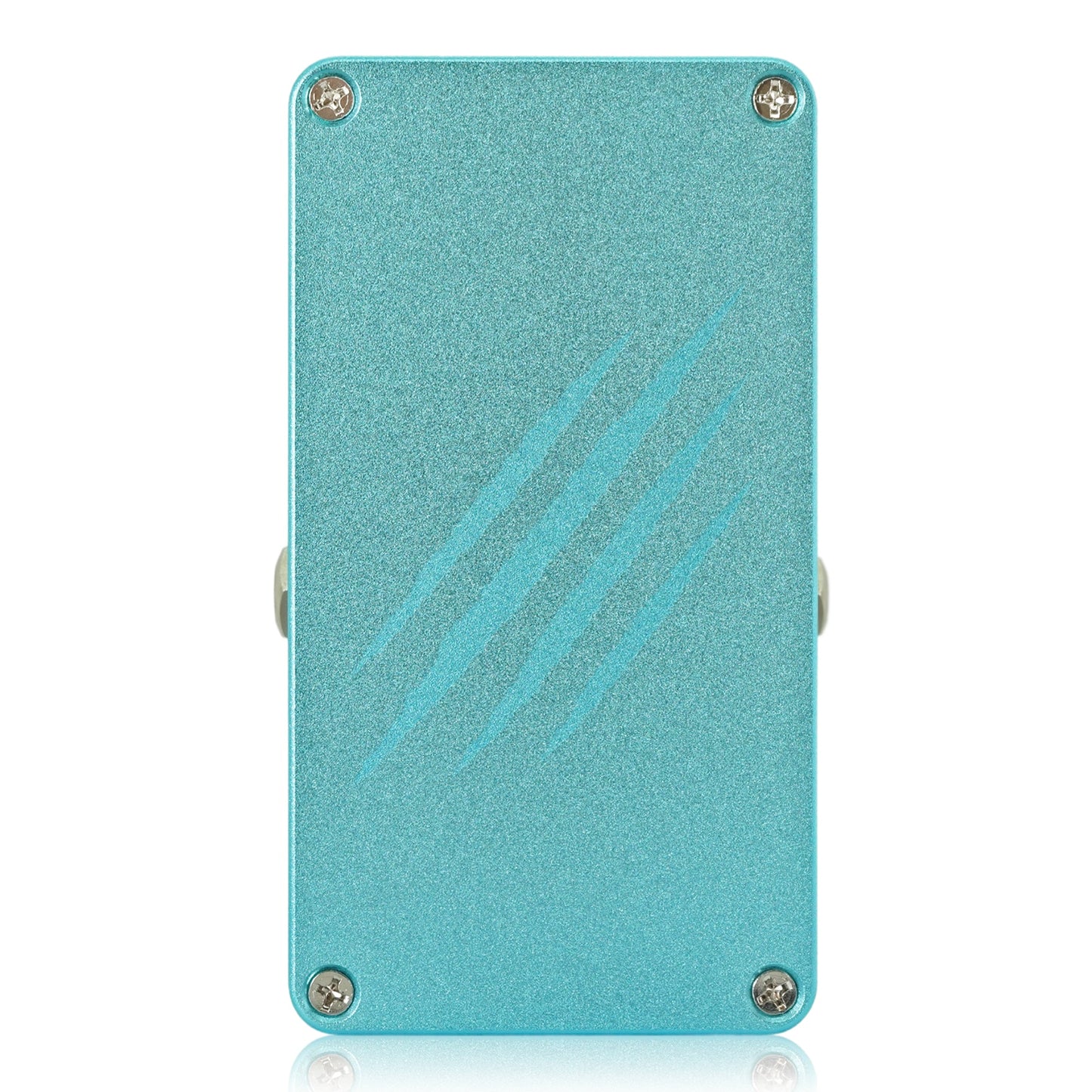

One Control Baby Blue Overdrive Pedal
OC-BBOD
Designed by pedal guru Bjorn Juhl (BJF/BJFe), the One Control Baby Blue Overdrive is based on the BJFe creation FUZZ 1 (originally released in 2000), utilizing a discrete circuit that combines dynamic overdrive and fuzz. The Baby Blue OD produces sublime tone at reduced rhythm volumes as well as cranked up lead output, whether set to a low gain clean, or a saturated wall of sound. Often compared to the most sought after boutique American style tube amplifier, the Baby Blue OD utilizes the finest modern components, painstakingly selected and tuned by Bjorn Juhl himself, to produce this classic, NOS sound.
Controls
Volume: Adjusts overall volume.
Drive: Set the type/character of distortion. At lower settings, it delivers softer distortion. At higher settings, the tone is more compressed, with more sustain.
Treble: Adjusts the high frequency component of the output signal. The response is high, so depending on your setup, you may find the best results with the control dialed quite low. Start around noon and dial back if too bright.
Specifications
Input impedance: 240 K
Output impedance: 25K
Drive voltage: 9V DC, center negative
Current Consumption: 1.5 mA
Size: 31 (W) x 113 (D) x 61 (H) mm (excluding knobs)
Weight: 295g
True-Bypass Switching
High Quality Aluminum Enclosure
