Radial
Radial PZ-Pre Acoustic Instrument Preamp
RA-PZ-PRECouldn't load pickup availability
The Radial PZ-Pre™ is a powerful acoustic instrument preamplifier. The magic lies in the combination of high performance 100% discrete class-A PZB piezo boosters, an ultra-quiet preamp circuit that will adapt to any pickup system and a host of connectivity options that will put you in total control. The PZ-Pre is equipped with two inputs for quick instrument changes on stage, or, for blending two pickups together. Powerful semi-parametric EQ and feedback eliminating controls allow the user to fine-tune their sound while eliminating troublesome frequencies. Offering both pre and post EQ direct box outputs, the PZ-Pre can be used send a dry signal to the house and performer tailored sound to monitors.
The Radial PZ-Pre is a high performance preamp designed specifically for acoustic instruments and pickups of all sorts. A proprietary response curve has been developed that works in conjunction with the passive-interactive tone controls and piezo optimized front end to produce a warm yet detailed sonic signature. Exceptionally low noise and distortion differentiate the PZ-Pre from others producing a natural tone that will flatter most instruments of all types.
| Specifications | ||
|---|---|---|
| Audio circuit type: | Proprietary active circuit | |
| Number of channels: | Dual Input, Amp Out, Pre and Post EQ XLR balanced Out | |
| Input Impedance: | 6.8k Ohm at input jack (PZB active 10meg Ohm) | |
| Output Impedance: | 1k Ohm | |
| Features | ||

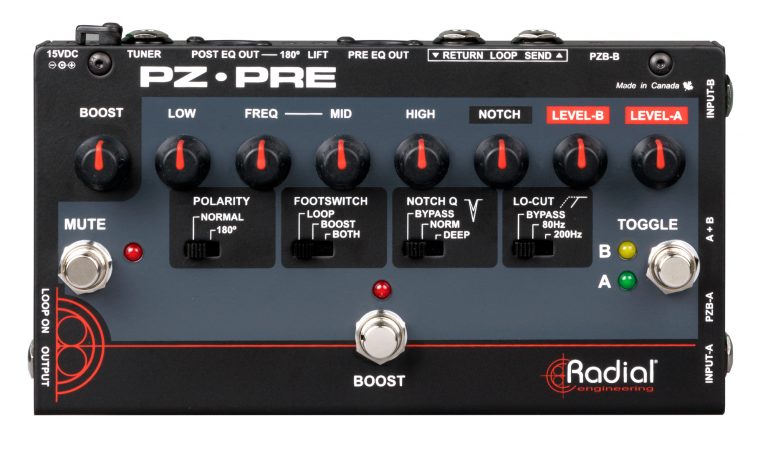

| 180° polarity reverse, Ground lift, Effects Loop, EQ Control, Boost | ||

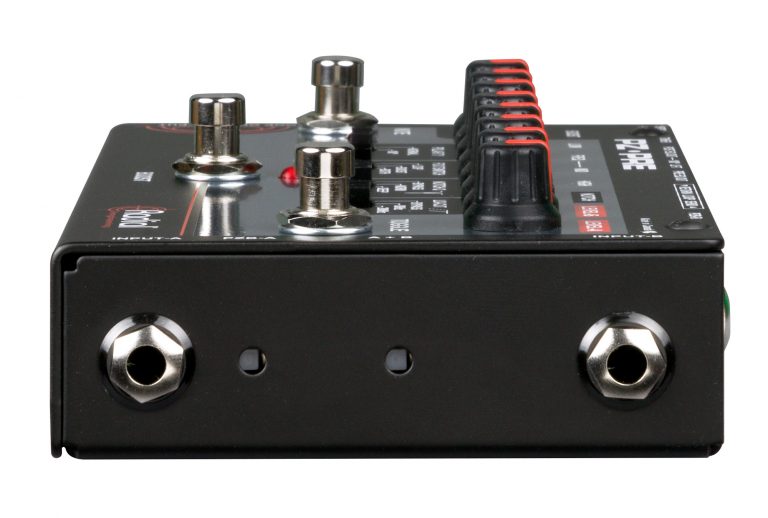

| Input Connectors: | 1/4" | |

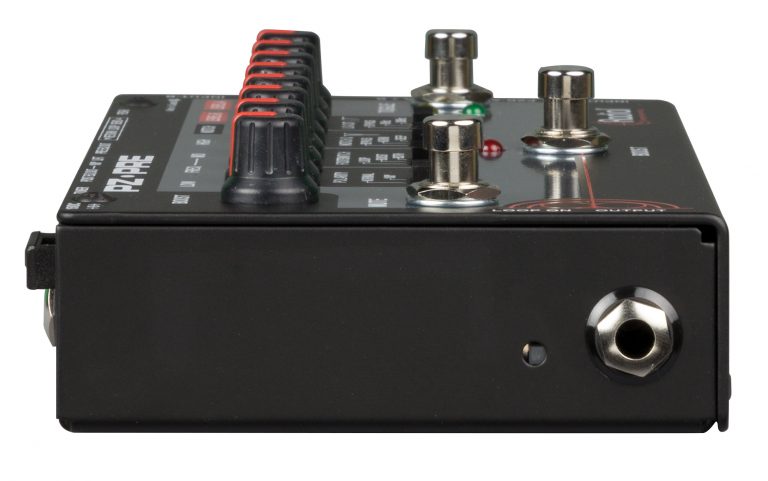

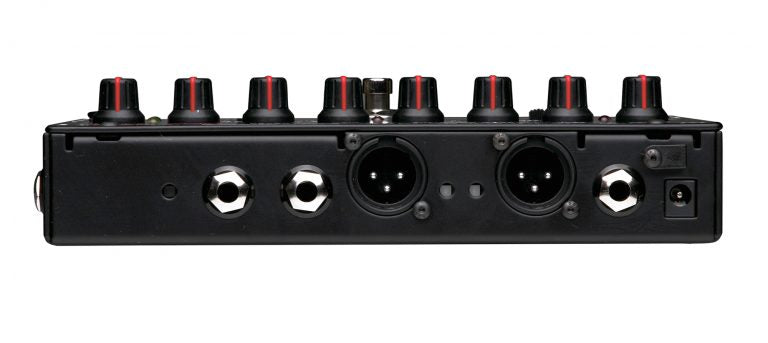

| Output Connectors: | Pre and Post EQ XLR | |
| Extras: | 1/4" Effects Loop, Tuner | |
| General | ||
| Construction: | 14-gauge steel | |
| Size (L x W x D): | 8"w x 4 ¼"d x 2"h (205 x 110 x 51mm) | |
| Weight: | 2.7lbs (1.2kg) | |
| Power: | 15VDC 400mA, center pole positive | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |
