Warwick
Warwick Rockboard Iso Power Block V9
WR-POWER-9-IECCouldn't load pickup availability

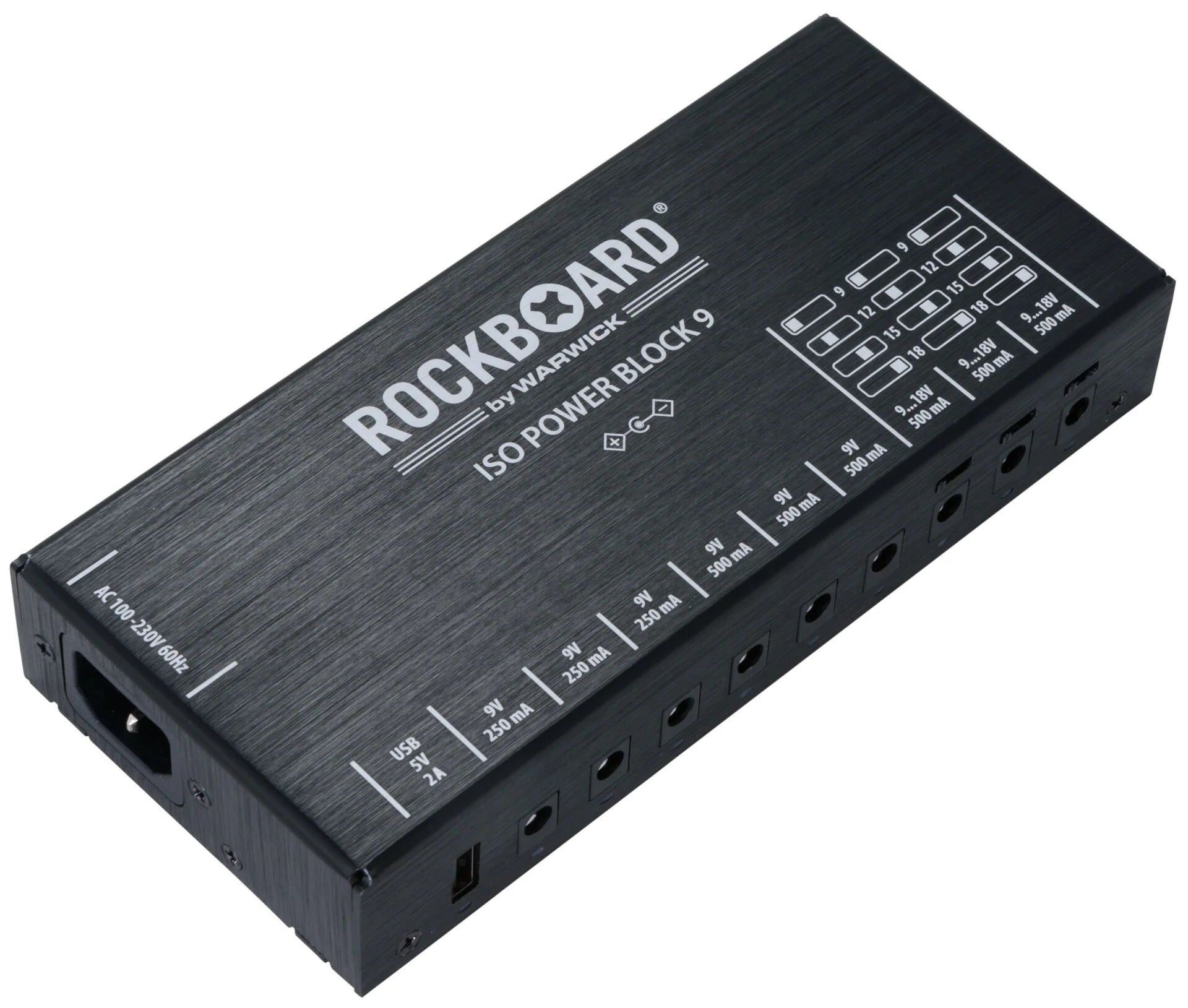

The RockBoard ISO Power Block IEC is a multi-power supply for effect devices and offers galvanically isolated, highly filtered power connections and a 5V USB connection. The multi-power supply is designed to silently power up effect pedals, even with different operating voltages, at the same time. The advanced filter technology effectively prevents high-frequency background noise. The separate short-circuit protection protects the connected effect pedals from damage in the event of a short circuit. Separate LEDs indicate short circuits for each individual connection. If a short circuit occurs, only the affected output is switched off, so that the smooth operation of the remaining connections is still ensured.
Details at a glance
- multi-power supply for effects pedals
- 9 x transformer isolated and highly filtered power slots
- 1 x USB output
- designed for powering up to 6 effects pedals simultaneously without any noise
- advanced filter technology prevents high-frequency noise
- 3 x switchable power slots (9V DC, 500 mA / 12V DC, 375 mA / 15V DC, 300 mA / 18V DC, 250 mA), 2.1 x 5.5 mm barrel plug, polarity (-) center
- 3 x power slots 9V DC, 500 mA, 2.1 x 5.5 mm barrel plug, polarity (-) center
- 3 x power slots 9V DC, 250 mA, 2.1 x 5.5 mm barrel plug, polarity (-) center
- 1 x USB-A output 5V, 2,000 mA
- individual status LEDs and short circuit protection for all power slots
- international input voltage operation with supply voltages from 100 to 230V AC / 47 - 63 Hz
- compact and sturdy aluminum housing
- including 9 x RockBoard Flat Power Cable 60 cm / 23 5/8" (for connecting effects pedals)
- including 1 x AC power cable, input voltage 100 - 240V AC and 47 - 63 Hz
- dimensions (L x W x H): 195 x 88 x 35 mm (7 43/64" x 3 15/32" x 1 3/8")
- weight: 591 g / 1.30 lbs
