Enlightened tone, bar none.

These basses inherit the feel and tone of Vintage Jazz Bass and bring out your performance.

VINTAGE TONE, MODERN FEEL - Select high quality materials combined with true vintage inspiration for the ultimate low end experience.

Plug in and get inspired.

 SPECS:

BODY: ALDER
COLOUR: CANDY APPLE RED
FINGERBOARD: ROSEWOOD
NECK: 22 FRET ROSEWOOD
NECK THICKNESS: 1ST FRET = 22.0MM / 12TH FRET = 25.00MM
NECK FINISH: OIL
FRETS: JESCAR SILVER NICKEL
NUT: PURE BONE
PICKUPS: XOTIC JAZZ W/ WOOD COVER

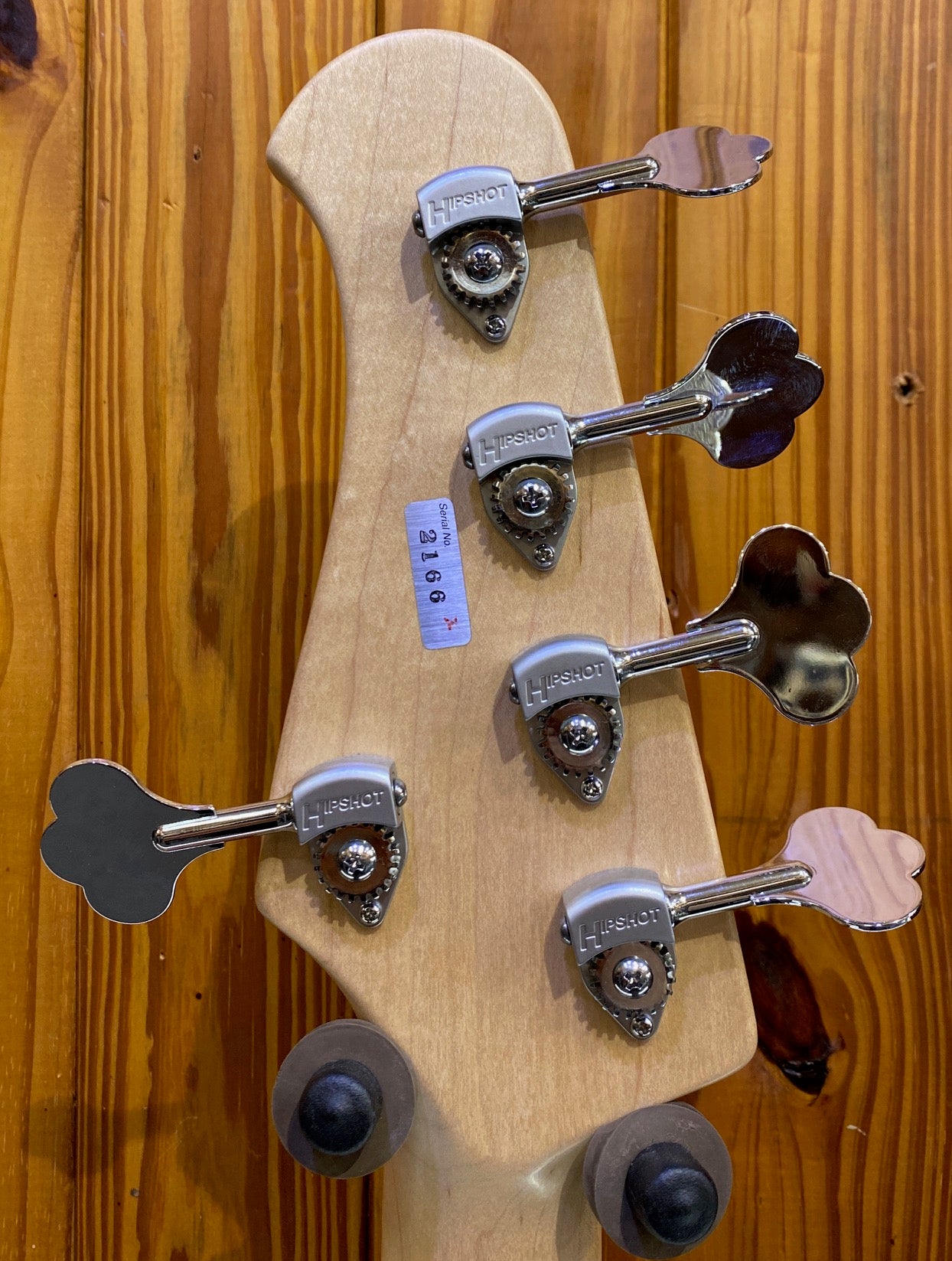

TUNERS: HIPSHOT ULTRALITE
BRIDGE: XOTIC A-TYPE
ELECTRONIC CONTROLS: 2 VOL + 1 TONE / XOTIC 3-BAND EQ W/ 2 FQ SELECTORS
HARDWARE: CHROME
STRINGS: XOTIC STAINLESS STEEL
SCALE LENGTH: 34 INCHES
WEIGHT: 4.5-4.6 KGS
NUT WIDTH: 47MM
NECK WIDTH (AT LAST FRET): 74MM
STRING SPACING (AT BRIDGE): 19MM

PREAMP: Xotic Onboard Bass Preamp Three Band EQ (high, mid, low) boost & cut. Center position produces flat, unaltered sound, with no added tonal coloration.
* Mini Toggle Switch-Use the Switch closer to the headstock to switch the mid-frequencies (400Hz/800Hz), and the other Switch to switch the treble-frequencies (6Hz/12kHz).
* Pre-set gain control to boost gain by one to three times (located in back panel for easy access).
* 18V drive is for more headroom, which allows incoming signals to pass through cleanly, without clipping the high-end or low-end frequencies.(Requires two 9V batteries)

Xotic Onboard Preamp Switch Configuration 1st Volume: Push (Active) / Pull (Passive) 2nd Volume: Push (Parallel) / Pull (Series)
*Control can be ordered with 1 Volume, 1Balancer, 1Tone. In that case, Series / Parallel switching .
Switch 1 (Mid Frequency Selector): UP / DOWN - 400Hz / 800Hz - ± 12DB
Switch 2 (Treble Frequency Selector): UP / DOWN - 6KHz / 12K - ± 18DB
